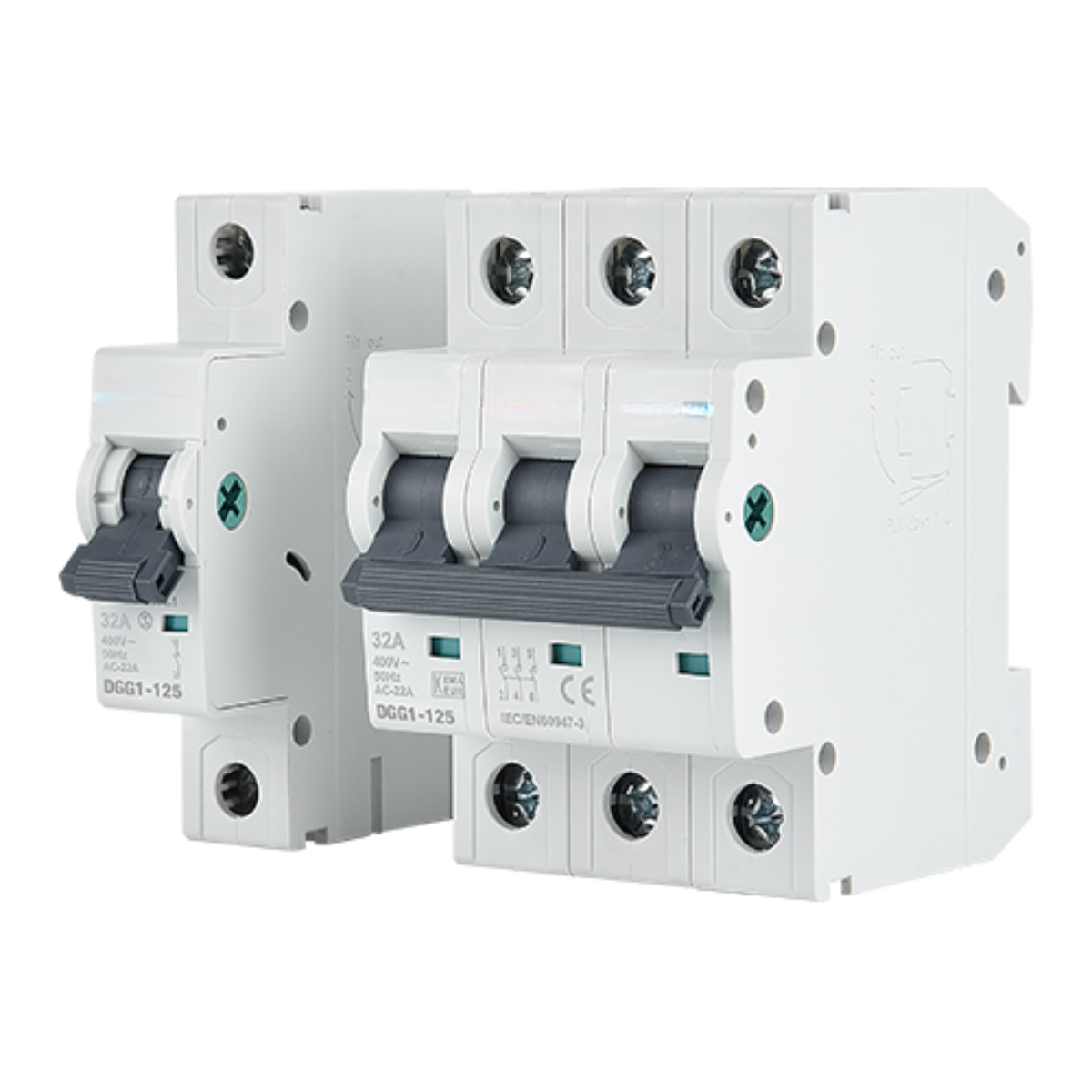

Disconnector Switch | DIN Rail Isolator | UKCA Certified
Price range: £2.72 through £11.31
16
People watching this product now!
Reviews (0)
Key Features
- Switch disconnector designed to safely isolate the main circuit
- DIN rail mounted — fits standard 35mm DIN rail for easy panel installation
- Lockable in the Off position for lockout/tagout safety compliance
- Contact status indicator window for clear visual on/off indication
- Upper and lower incoming — flexible cable entry from either direction
- Matches DGB1 series MCBs and RCBOs for consumer unit builds
- Suitable for residential, commercial and industrial installations
- Available in 1P, 2P, 3P and 4P configurations, 32A to 125A
- Rated to IEC 60947-3 — certified to KEMA, CE, SEMKO and CB standards
- IP20 protection grade with 10,000 electrical / 20,000 mechanical operation life
Specifications
| Brand | Terelec |
| SKU / Model | DGG1-125-1P-100A |
| Current Rating | 100A |
| Frame Current | 125A |
| Voltage Rating | AC 230V (1P) / AC 400V (3P, 4P) |
| Number of Poles | 1 Pole |
| IP Rating | IP20 |
| Mounting | 35mm DIN Rail |
| Terminal Capacity | 35mm² (at 100A) |
| Terminal Type | Fixed with screw |
| Incoming Method | Upper and Lower |
| Lockable | Yes |
| Indicator Window | Contact status indication |
| Electrical Life | 10,000 operations |
| Mechanical Life | 20,000 operations |
| Rated Insulation Voltage | 690V |
| Rated Frequency | 50/60 Hz |
| Pollution Class | Class III |
| Storage Temperature | -25°C to +70°C |
| Installation Altitude | ≤2000m |
| Standards | IEC 60947-3 |
| Certifications | KEMA, CE, SEMKO, CB |
Downloads
Download the product datasheet and supporting documents below:
To request a datasheet for a specific product, please contact us.
Related products
10kA MCB – High Breaking Capacity Miniature Circuit Breaker
In stock
Price range: £2.17 through £10.16
Select options
This product has multiple variants. The options may be chosen on the product page
SKU:
DGB1-63H

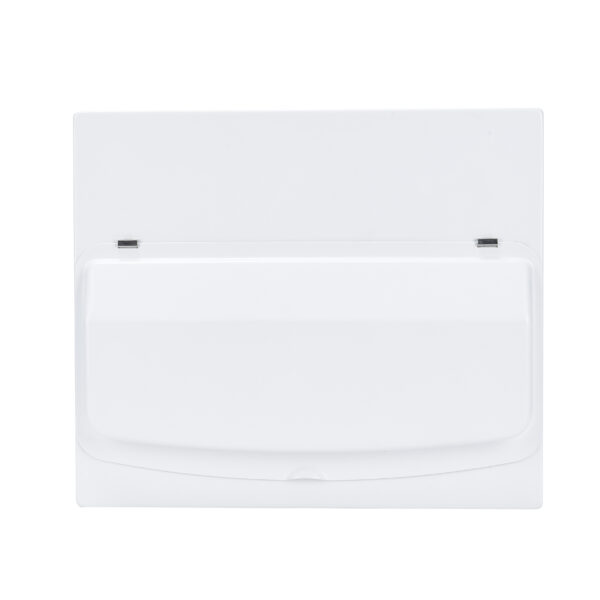

Consumer Unit | UKCA Certified
In stock
Price range: £21.82 through £119.34
Select options
This product has multiple variants. The options may be chosen on the product page

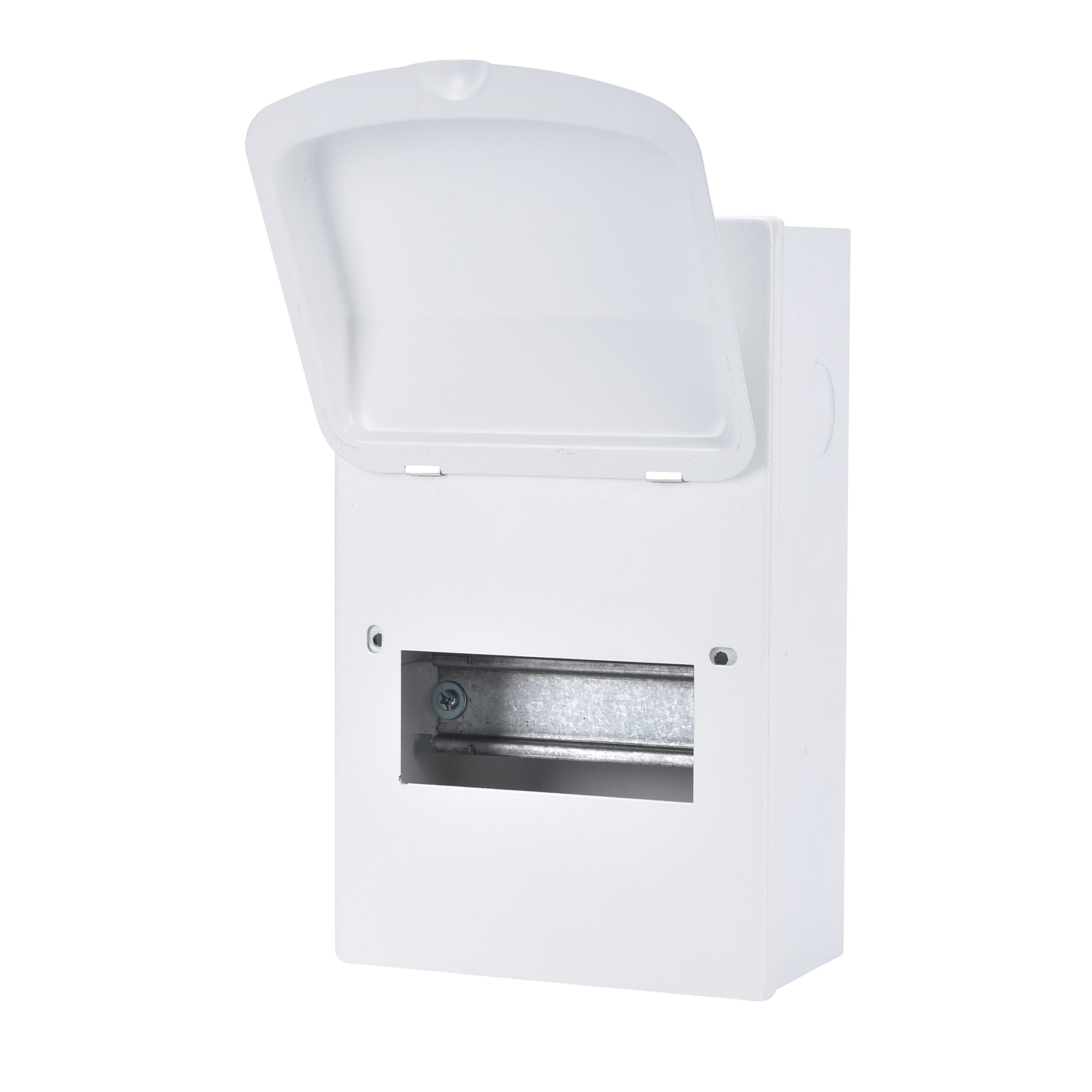

Metal Garage Consumer Unit | UKCA Certified
