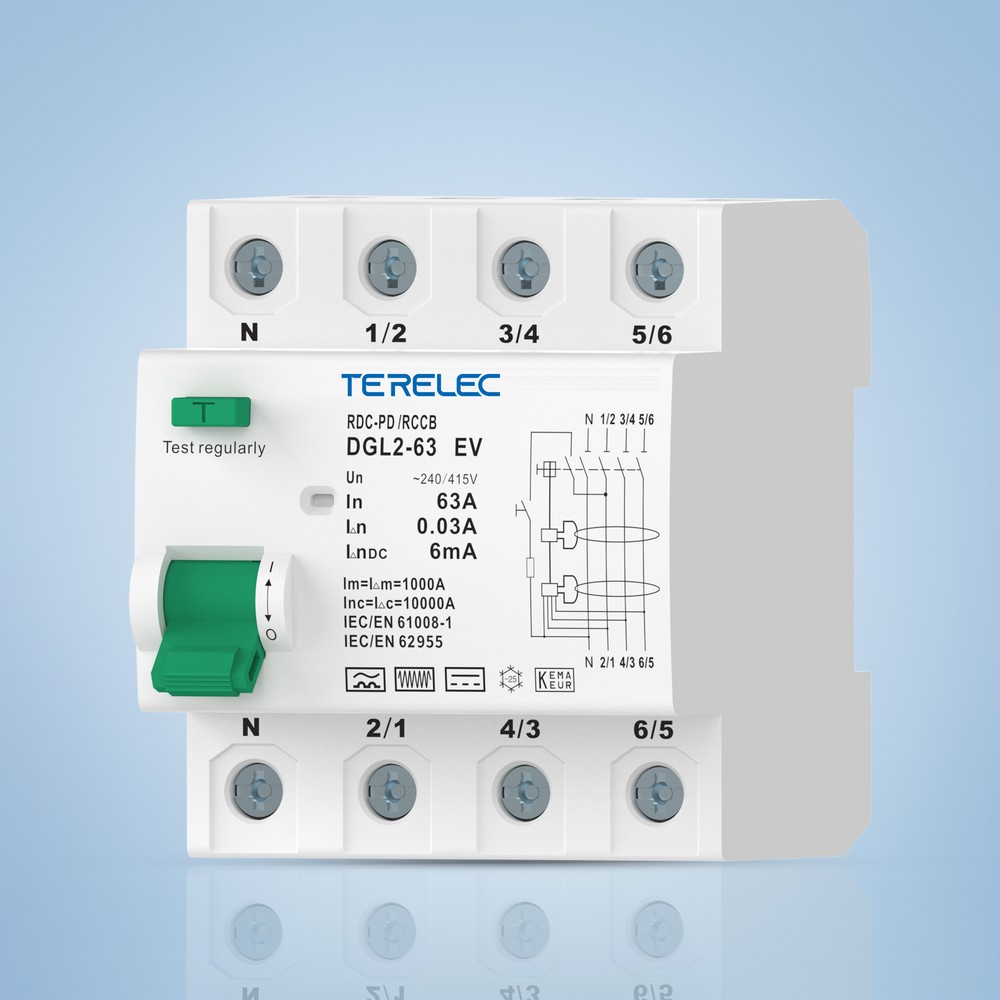

4-Pole RCD Type B EV 6mA — EV Charging Residual Current Device
The DGL2-B-EV is a Type B Residual Current Device (RCD) specifically engineered for electric vehicle (EV) charging installations. Type B RCDs provide the highest level of earth leakage protection by detecting AC sinusoidal, pulsating DC and smooth DC residual currents — covering all fault types that can occur in EV charger circuits using power electronic converters with DC charging components.
With integrated 6mA DC fault detection, this RCD satisfies the requirements of BS 7671 (18th Edition) and IEC 62955 for EV charging circuits without the need for a separate external DC detection device. Available in 2-pole and 4-pole configurations with 25A, 40A and 63A current ratings, it is designed for both single-phase and three-phase EV charger installations. Manufactured to IEC/EN 62423 and designed for 35mm DIN rail mounting, it is compatible with all consumer units and EV charging distribution boards.
Key Features
- Type B residual current detection — detects AC, pulsating DC and smooth DC earth leakage faults
- Built-in 6mA DC fault detection — compliant with IEC 62955 for EV charging installations
- Eliminates the need for separate DC detection modules on EV charger circuits
- Available in 2P (single-phase) and 4P (three-phase) configurations
- Current ratings: 25A, 40A and 63A — suitable for 7kW, 11kW and 22kW EV charger installations
- 30mA sensitivity — personal protection level for EV charging circuits
- Electromagnetic trip mechanism — voltage-independent operation
- Test button — periodic functional testing for BS 7671 compliance
- 35mm DIN rail mounting — fits all consumer units and standard distribution boards
- IP20 finger-safe protection — suitable for indoor panel installation
Technical Specification
| Standard | IEC/EN 62423 / IEC 62955 |
| Product model | DGL2-B-EV |
| RCD type | Type B (AC + pulsating DC + smooth DC) |
| Rated residual current (IΔn) | 30mA (AC) / 6mA (DC) |
| Number of poles | 2P and 4P |
| Rated current (In) | 25A, 40A, 63A |
| Rated voltage | 240V AC (2P) / 415V AC (4P) |
| Rated insulation voltage (Ui) | 500V |
| Rated conditional short-circuit current (Inc) | 10kA (with upstream protection) |
| Trip mechanism | Electromagnetic |
| Rated frequency | 50/60 Hz |
| Module width | 36mm (2P) / 72mm (4P) |
| Protection grade | IP20 |
| Mechanical life | 20,000 operations |
| Electrical life | 10,000 operations |
| Max wiring capacity | 35mm² |
| Installation method | 35mm DIN rail |
| Operating temperature | -25°C to +40°C |
Compliance & Certification
- Manufactured to IEC/EN 62423 and IEC 62955
- UKCA certified
- CE certified | CB scheme
- Compliant with BS 7671 (18th Edition) requirements for EV charging circuit protection
- Meets IEC 61851-1 requirements for Mode 3 EV charging equipment
Installation Notes
This Type B RCD must be installed by a qualified electrician in accordance with BS 7671 (18th Edition). Always isolate the supply before installation. Regulation 722.531.3.101 requires DC fault current protection on EV charging circuits — this Type B RCD with integrated 6mA DC detection fulfils this requirement without additional modules. The RCD must be protected upstream by an appropriately rated MCB or fuse. The test button should be operated at least quarterly.
- Switch disconnector designed to safely isolate the main circuit
- DIN rail mounted — fits standard 35mm DIN rail for easy panel installation
- Lockable in the Off position for lockout/tagout safety compliance
- Contact status indicator window for clear visual on/off indication
- Upper and lower incoming — flexible cable entry from either direction
- Matches DGB1 series MCBs and RCBOs for consumer unit builds
- Suitable for residential, commercial and industrial installations
- Available in 1P, 2P, 3P and 4P configurations, 32A to 125A
- Rated to IEC 60947-3 — certified to KEMA, CE, SEMKO and CB standards
- IP20 protection grade with 10,000 electrical / 20,000 mechanical operation life
| Brand | Terelec |
| SKU / Model | DGG1-125-1P-100A |
| Current Rating | 100A |
| Frame Current | 125A |
| Voltage Rating | AC 230V (1P) / AC 400V (3P, 4P) |
| Number of Poles | 1 Pole |
| IP Rating | IP20 |
| Mounting | 35mm DIN Rail |
| Terminal Capacity | 35mm² (at 100A) |
| Terminal Type | Fixed with screw |
| Incoming Method | Upper and Lower |
| Lockable | Yes |
| Indicator Window | Contact status indication |
| Electrical Life | 10,000 operations |
| Mechanical Life | 20,000 operations |
| Rated Insulation Voltage | 690V |
| Rated Frequency | 50/60 Hz |
| Pollution Class | Class III |
| Storage Temperature | -25°C to +70°C |
| Installation Altitude | ≤2000m |
| Standards | IEC 60947-3 |
| Certifications | KEMA, CE, SEMKO, CB |
Download the product datasheet and supporting documents below:
To request a datasheet for a specific product, please contact us.
