10kA MCB – High Breaking Capacity Miniature Circuit Breaker

10kA MCB — High Breaking Capacity Miniature Circuit Breaker

The DGB1-63H is a 10kA high breaking capacity Miniature Circuit Breaker (MCB) providing superior overcurrent and short-circuit protection for domestic, commercial and light industrial electrical installations. With a 10kA rated short-circuit breaking capacity — the highest grade commonly specified for residential and commercial work under BS 7671 (18th Edition) — this MCB is suitable for installations close to the supply transformer where prospective fault currents exceed 6kA.

Manufactured to IEC/EN 60898-1 and designed for 35mm DIN rail mounting, the DGB1-63H features a Type C thermal-magnetic trip mechanism with a 5–10In instantaneous trip range. This makes it ideal for general wiring, socket circuits, lighting circuits, cooker circuits and loads with moderate inrush current. Available in 1P, 2P, 3P and 4P configurations with current ratings from 6A to 63A, it is compatible with all consumer units and standard distribution boards.

Key Features

• 10kA (Icn) high breaking capacity — exceeds most residential and commercial fault level specifications
• Type C trip curve — 5–10In instantaneous trip range for general domestic and commercial circuits

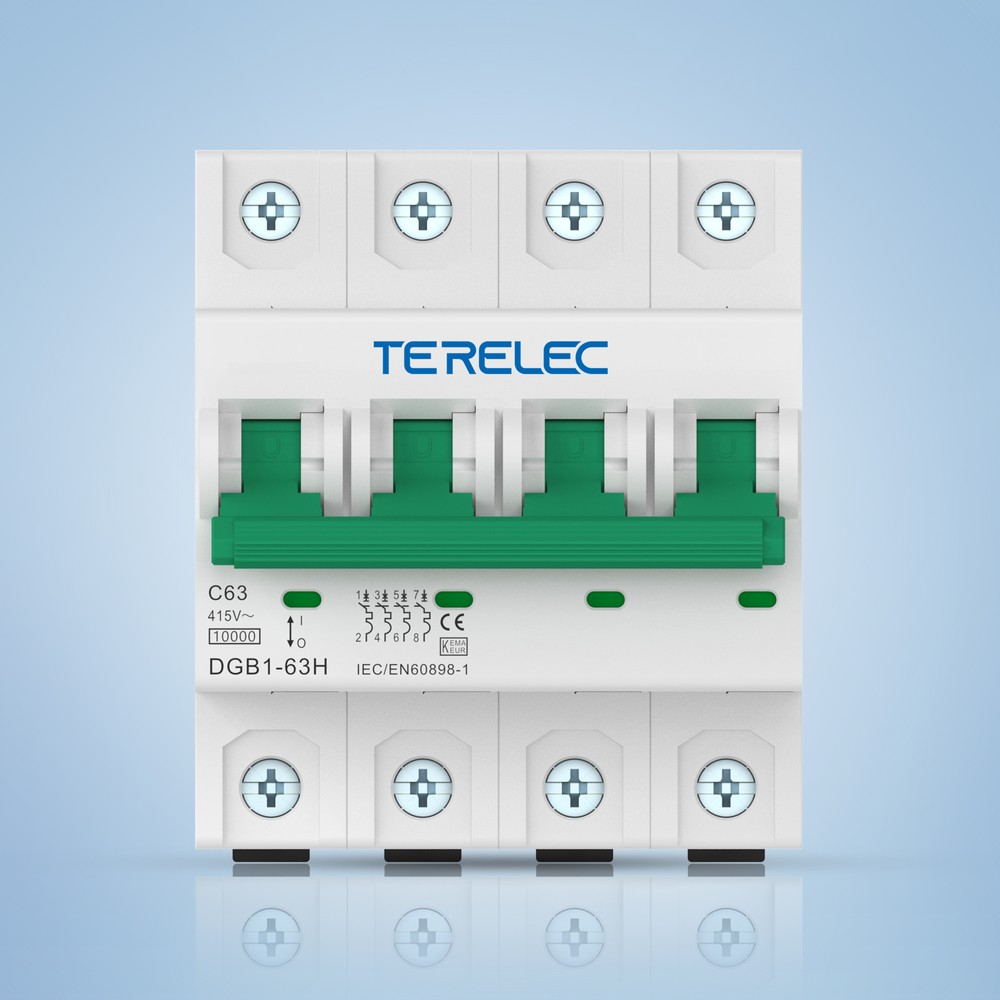

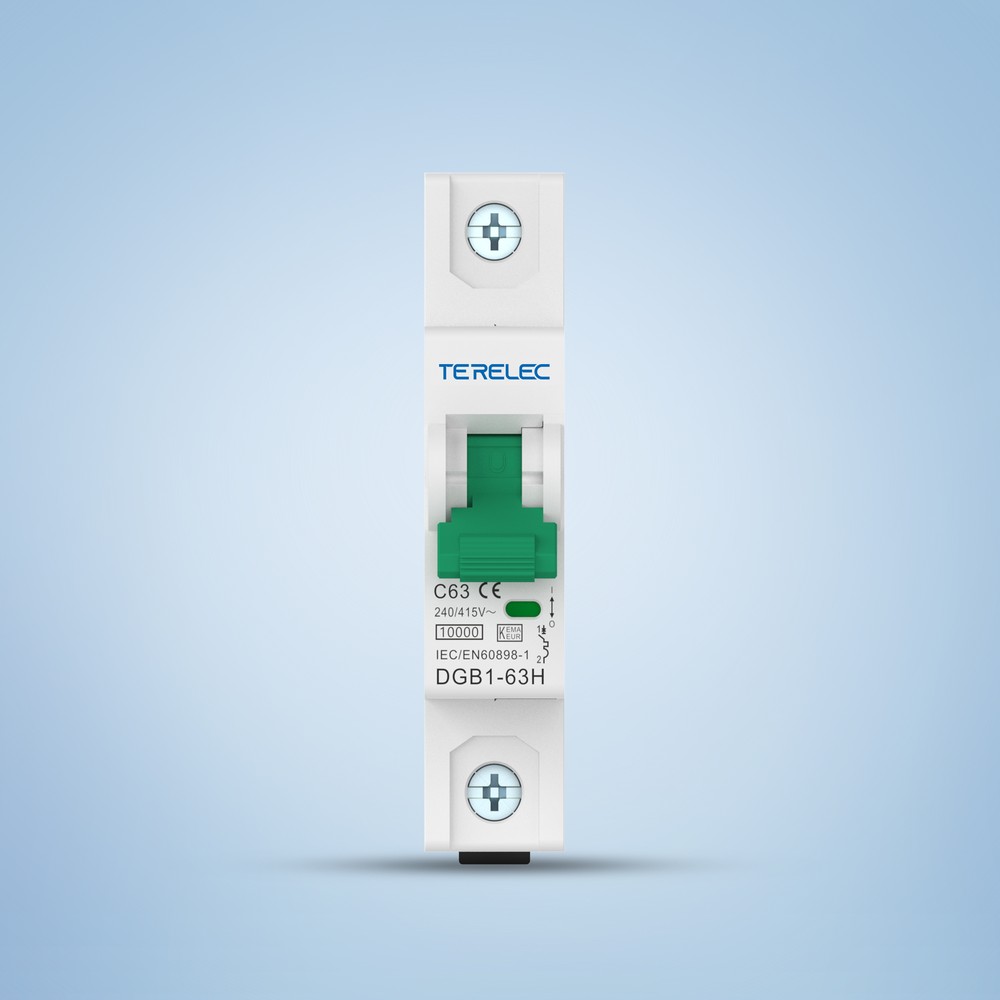

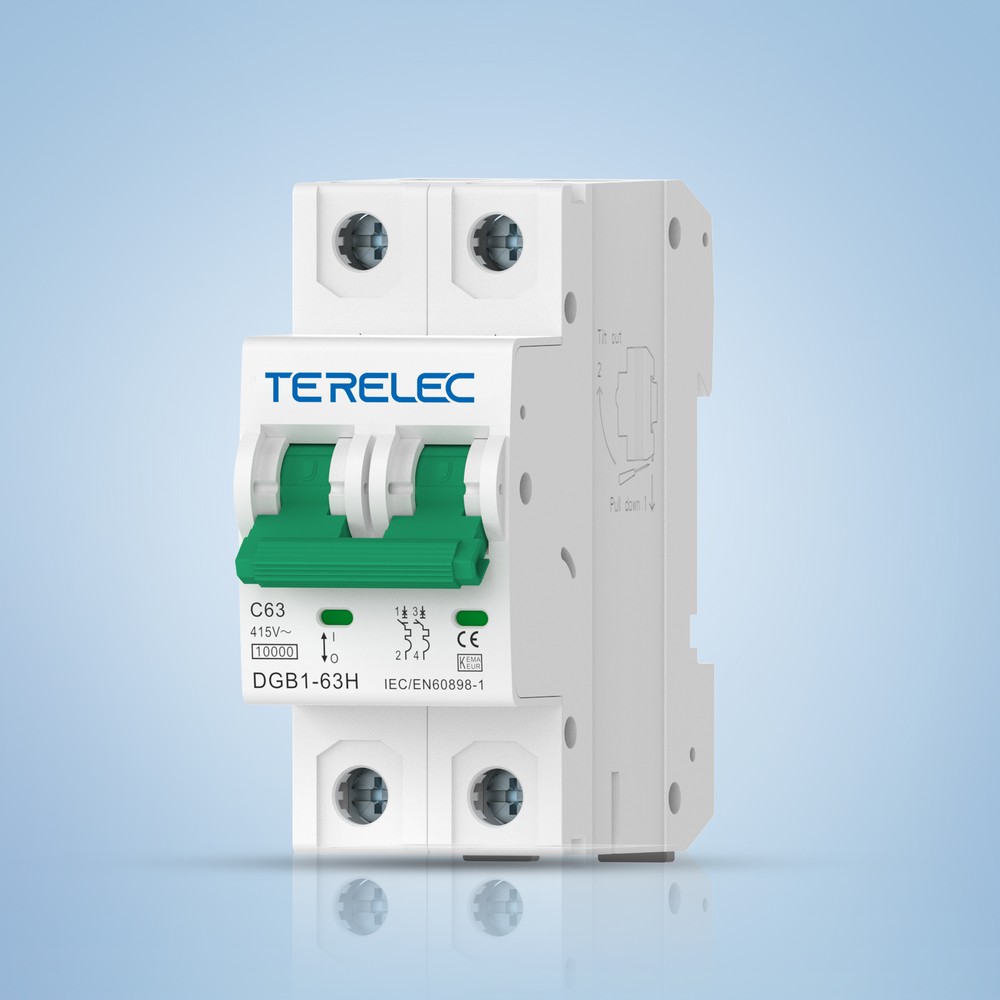

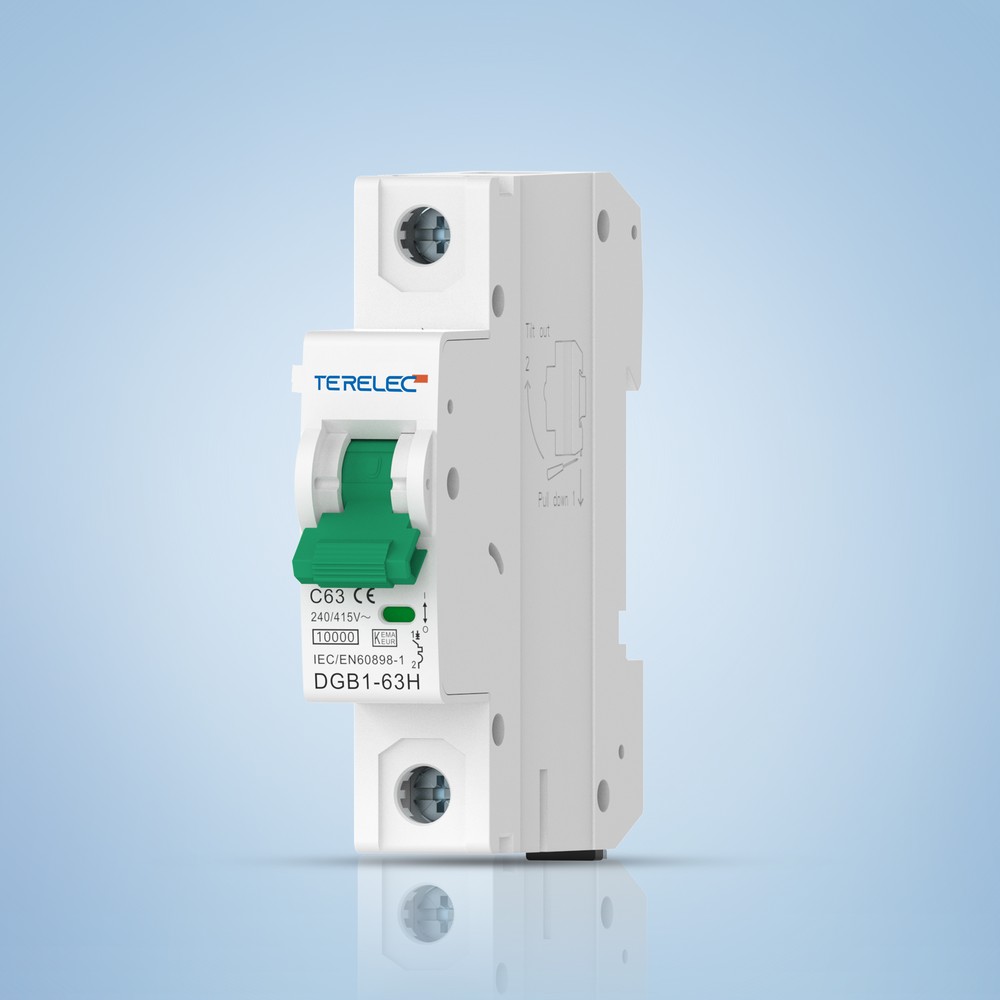

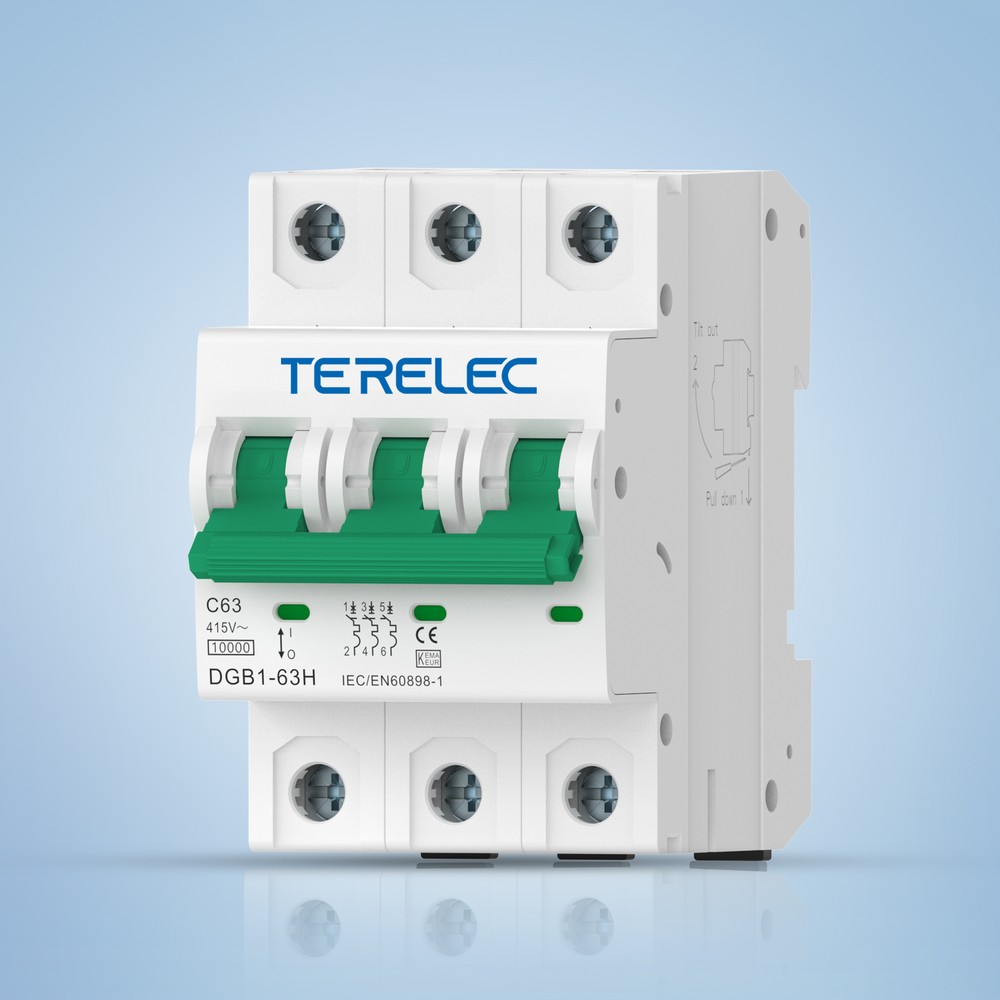

• Available in 1P, 2P, 3P and 4P configurations for single and three-phase systems
• Full current range: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
• 35mm DIN rail mounting — fits all consumer units and standard distribution boards
• Thermal-magnetic trip mechanism — accurate and reliable overload and short-circuit protection
• IP20 finger-safe protection — suitable for indoor panel installation
• Contact position indicator window — visual on/off and trip status at a glance
• Compatible with MX shunt trip, OF auxiliary contact, SD alarm and MV+MN accessories (sold separately)

Technical Specification

Compliance & Certification

• Manufactured to IEC/EN 60898-1
• CE certified | SEMKO | CB scheme
• Suitable for placement on the GB market under Electrical Equipment (Safety) Regulations 2016

Installation Notes

This MCB must be installed by a qualified electrician in accordance with BS 7671 (18th Edition IET Wiring Regulations). Always isolate the supply before installation. Connect cables with a maximum cross-sectional area of 25mm² and tighten terminals to 3.5 Nm. The MCB clips onto a 35mm DIN rail inside an appropriate consumer unit or distribution board. The 10kA rating makes this MCB suitable for installations close to the supply transformer where prospective fault currents are higher than 6kA.
