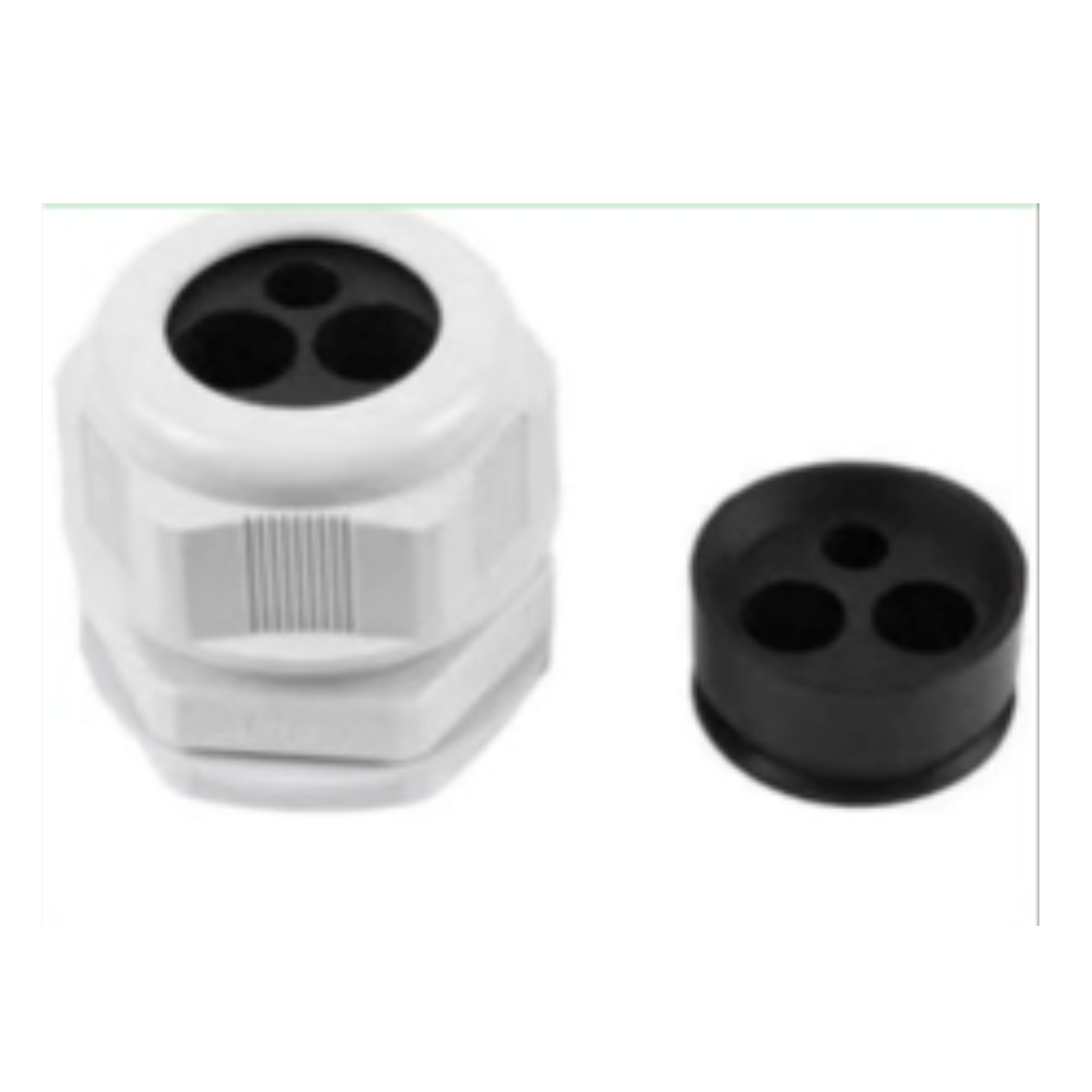

The M32 Cable Gland is a threaded cable entry fitting designed for use with consumer units and standard electrical enclosures featuring M32 knockouts. This gland provides a secure, strain-relieved entry point for main tails and sub-main cables entering the consumer unit, helping to maintain the IP rating of the enclosure and ensuring neat, professional cable management.

Manufactured from durable nylon with an integrated rubber sealing gasket, the M32 cable gland accommodates cable outer diameters typically between 15mm and 25mm. It is supplied with a locknut for secure fastening from inside the enclosure and is suitable for use with standard meter tails (16mm² and 25mm² twin-core) commonly found in UK domestic electrical installations.

Key Features

• M32 thread — compatible with all consumer units and standard M32 knockout enclosures
• Accommodates cables from 15mm to 25mm outer diameter — suitable for 16mm² and 25mm² meter tails
• Integrated rubber sealing gasket — maintains enclosure IP rating
• Supplied with locknut — secure fixing from inside the consumer unit
• Nylon construction — durable, flame-retardant and corrosion-resistant
• Provides cable strain relief — prevents cable movement and damage at the entry point
• Quick and easy installation — hand-tighten with a final quarter-turn using a spanner

Technical Specification

Compliance & Certification

• Suitable for use in installations compliant with BS 7671 (18th Edition IET Wiring Regulations)
• IP68 rated when correctly installed
• Flame-retardant nylon construction (UL94 V-2)
• Supplied Technologies Limited, UK

Installation Notes

Remove the knockout from the consumer unit enclosure. Thread the cable gland through the knockout hole from outside, ensuring the rubber seal is in place. Secure from the inside using the supplied locknut. Feed the cable through the gland and tighten the compression nut by hand, then a quarter-turn with a spanner to achieve a secure, sealed entry. Always isolate the supply before working on a consumer unit.
