2/4-Pole RCD 30mA Type A — Residual Current Device | UKCA Certified
Price range: £10.92 through £18.70
RCD Type A | 2P/4P | 25A–100A | 30mA/100mA/300mA | UKCA Certified

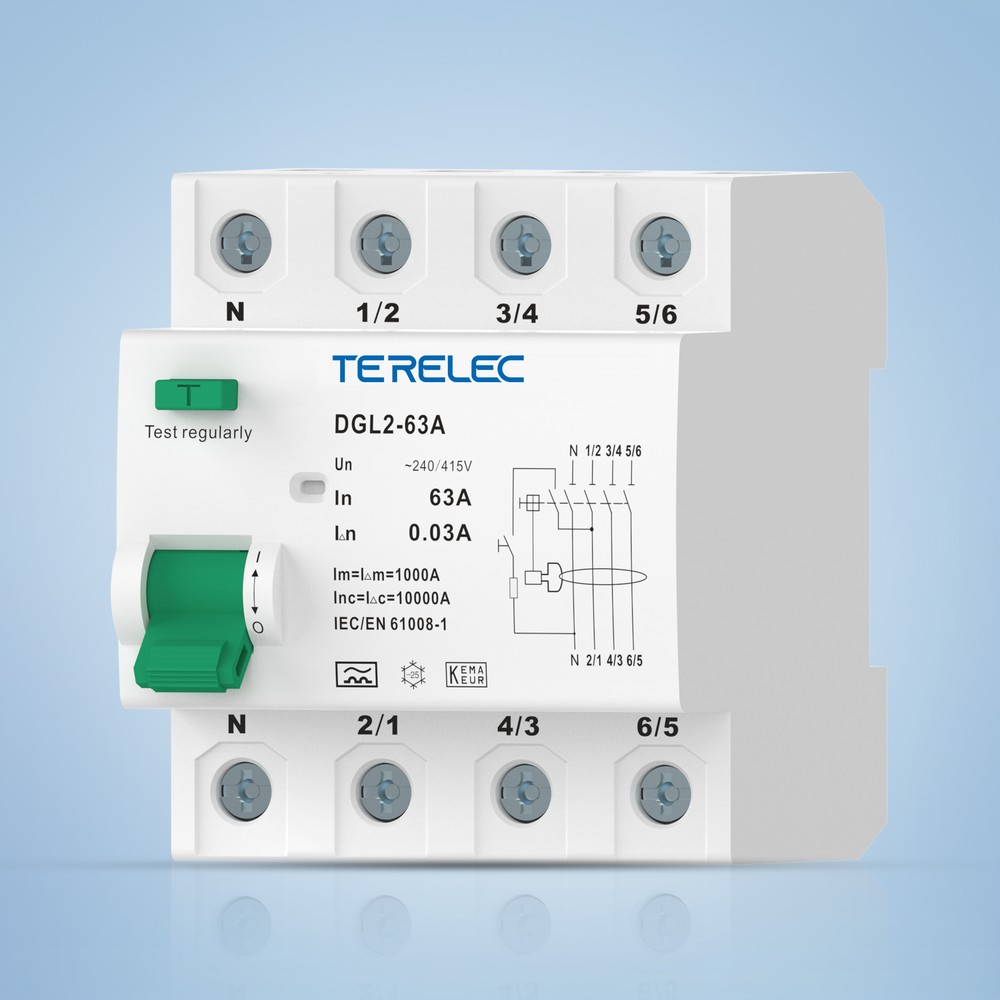

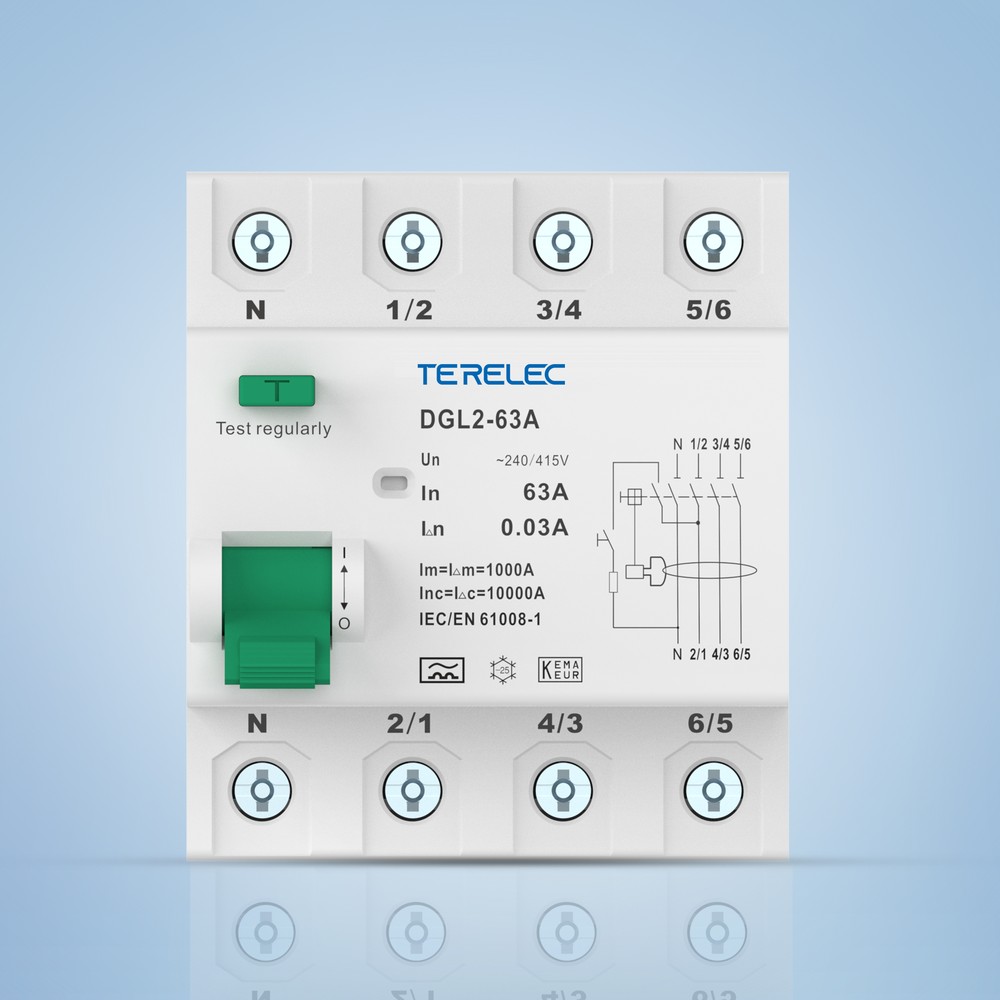

2/4-Pole RCD 30mA Type A — Residual Current Device
The DGL2-100-A is a Type A Residual Current Device (RCD) available in both 2-pole and 4-pole configurations, providing enhanced earth leakage protection for modern domestic, commercial and EV charging installations. Type A RCDs detect both AC sinusoidal and pulsating DC residual currents — a requirement under BS 7671 (18th Edition) Amendment 2 for circuits supplying equipment with electronic components such as EV chargers, heat pumps, solar inverters and IT equipment.
Available in 25A, 40A, 63A, 80A and 100A current ratings with 30mA, 100mA and 300mA sensitivity options, this RCD is suitable for personal protection (30mA), fire protection (100mA/300mA) and main switch applications. The 2-pole version suits single-phase installations, while the 4-pole version is designed for three-phase systems. Manufactured to IEC/EN 61008-1 and designed for 35mm DIN rail mounting, it fits all consumer units and standard distribution boards.
Key Features
- Type A residual current detection — detects AC sinusoidal and pulsating DC earth leakage faults
- Available in 2P (single-phase) and 4P (three-phase) configurations
- Available sensitivities: 30mA (personal protection), 100mA and 300mA (fire protection)
- Current ratings: 25A, 40A, 63A, 80A and 100A — covers domestic to commercial load requirements
- Required by BS 7671 for EV charger circuits, heat pump circuits and solar PV installations
- Electromagnetic trip mechanism — operates independently of supply voltage
- Test button — allows periodic functional testing as required by regulations
- 35mm DIN rail mounting — fits all consumer units and standard distribution boards
- IP20 finger-safe protection — suitable for indoor panel installation
- Trip indicator — visual confirmation of RCD trip status
Technical Specification
| Standard | IEC/EN 61008-1 |
| Product model | DGL2-100-A |
| RCD type | Type A |
| Rated residual current (IΔn) | 30mA, 100mA, 300mA |
| Number of poles | 2P and 4P |
| Rated current (In) | 25A, 40A, 63A, 80A, 100A |
| Rated voltage | 240V AC (2P) / 415V AC (4P) |
| Rated insulation voltage (Ui) | 500V |
| Rated conditional short-circuit current (Inc) | 6kA (with upstream protection) |
| Trip mechanism | Electromagnetic |
| Rated frequency | 50/60 Hz |
| Module width | 36mm (2P) / 72mm (4P) |
| Pollution level | 2 |
| Protection grade | IP20 |
| Mechanical life | 20,000 operations |
| Electrical life | 10,000 operations |
| Max wiring capacity | 35mm² |
| Max tightening torque | 3.5 Nm |
| Installation method | 35mm DIN rail |
| Operating temperature | -25°C to +40°C |
Compliance & Certification
- Manufactured to IEC/EN 61008-1
- UKCA certified
- CE certified | CB scheme
- Compliant with BS 7671 (18th Edition) Type A RCD requirements for EV, heat pump and inverter circuits
Installation Notes
This RCD must be installed by a qualified electrician in accordance with BS 7671 (18th Edition). Always isolate the supply before installation. The RCD must be protected upstream by an appropriately rated MCB or fuse. The test button should be operated at least quarterly. Type A RCDs are required under BS 7671 Amendment 2 for circuits supplying EV charge points, equipment with power electronic converters, and other loads that may produce pulsating DC residual currents. For circuits with smooth DC fault currents, a Type B RCD should be specified.
- Switch disconnector designed to safely isolate the main circuit
- DIN rail mounted — fits standard 35mm DIN rail for easy panel installation
- Lockable in the Off position for lockout/tagout safety compliance
- Contact status indicator window for clear visual on/off indication
- Upper and lower incoming — flexible cable entry from either direction
- Matches DGB1 series MCBs and RCBOs for consumer unit builds
- Suitable for residential, commercial and industrial installations
- Available in 1P, 2P, 3P and 4P configurations, 32A to 125A
- Rated to IEC 60947-3 — certified to KEMA, CE, SEMKO and CB standards
- IP20 protection grade with 10,000 electrical / 20,000 mechanical operation life
| Brand | Terelec |
| SKU / Model | DGG1-125-1P-100A |
| Current Rating | 100A |
| Frame Current | 125A |
| Voltage Rating | AC 230V (1P) / AC 400V (3P, 4P) |
| Number of Poles | 1 Pole |
| IP Rating | IP20 |
| Mounting | 35mm DIN Rail |
| Terminal Capacity | 35mm² (at 100A) |
| Terminal Type | Fixed with screw |
| Incoming Method | Upper and Lower |
| Lockable | Yes |
| Indicator Window | Contact status indication |
| Electrical Life | 10,000 operations |
| Mechanical Life | 20,000 operations |
| Rated Insulation Voltage | 690V |
| Rated Frequency | 50/60 Hz |
| Pollution Class | Class III |
| Storage Temperature | -25°C to +70°C |
| Installation Altitude | ≤2000m |
| Standards | IEC 60947-3 |
| Certifications | KEMA, CE, SEMKO, CB |
Download the product datasheet and supporting documents below:
To request a datasheet for a specific product, please contact us.
